Aerodynamic Databese of High-rise Buildings

Test model case
Model geometric parameters
Breadth/Depth/Height=100:100:100; Model scale=1/400
Pressure tap locations
Figure-->

Wind tunnel test result

Contours of local wind pressure coefficients

Wind direction	0o	5o	10o	15o	20o	25o	30o	35o	40o	45o	50o
Mean values

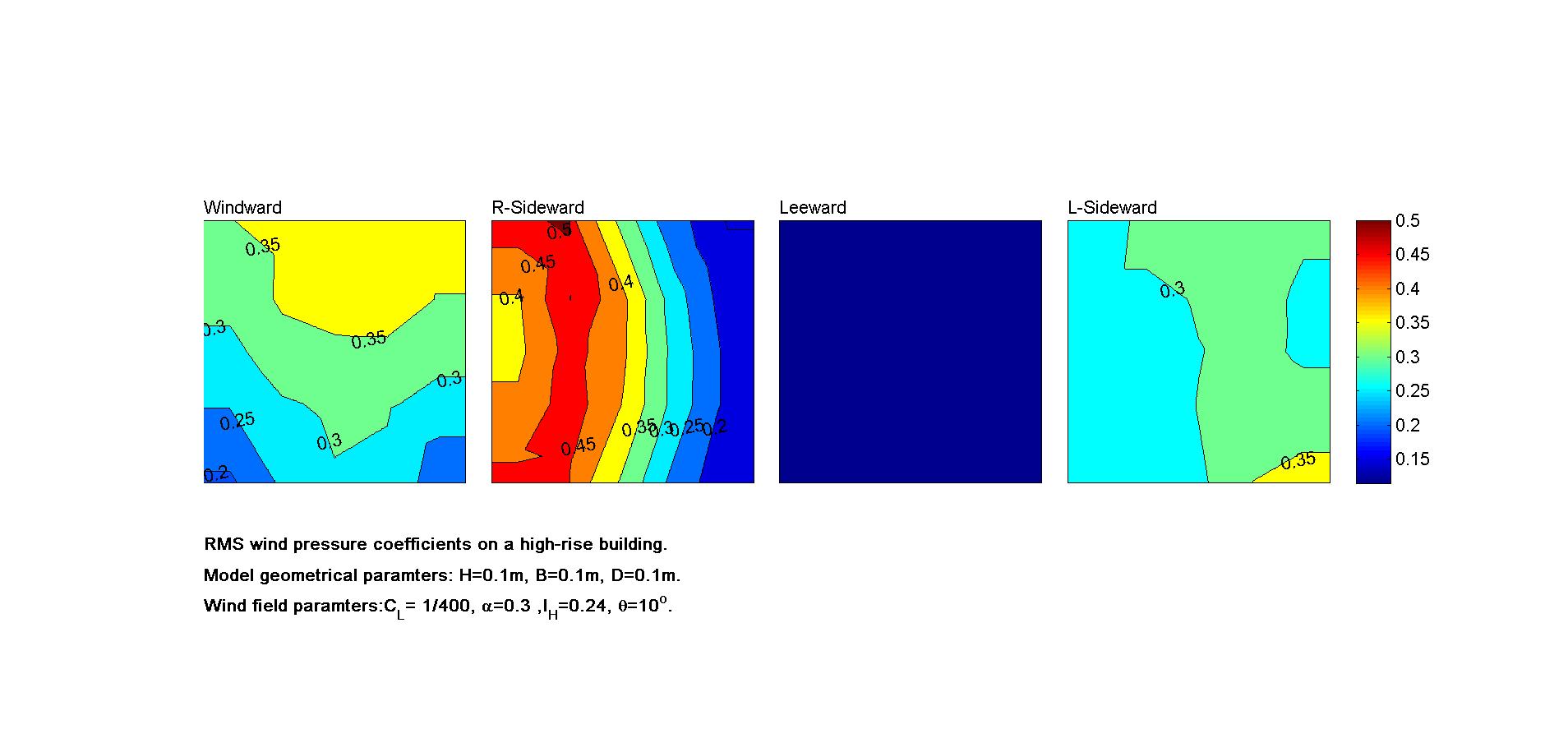

RMS values

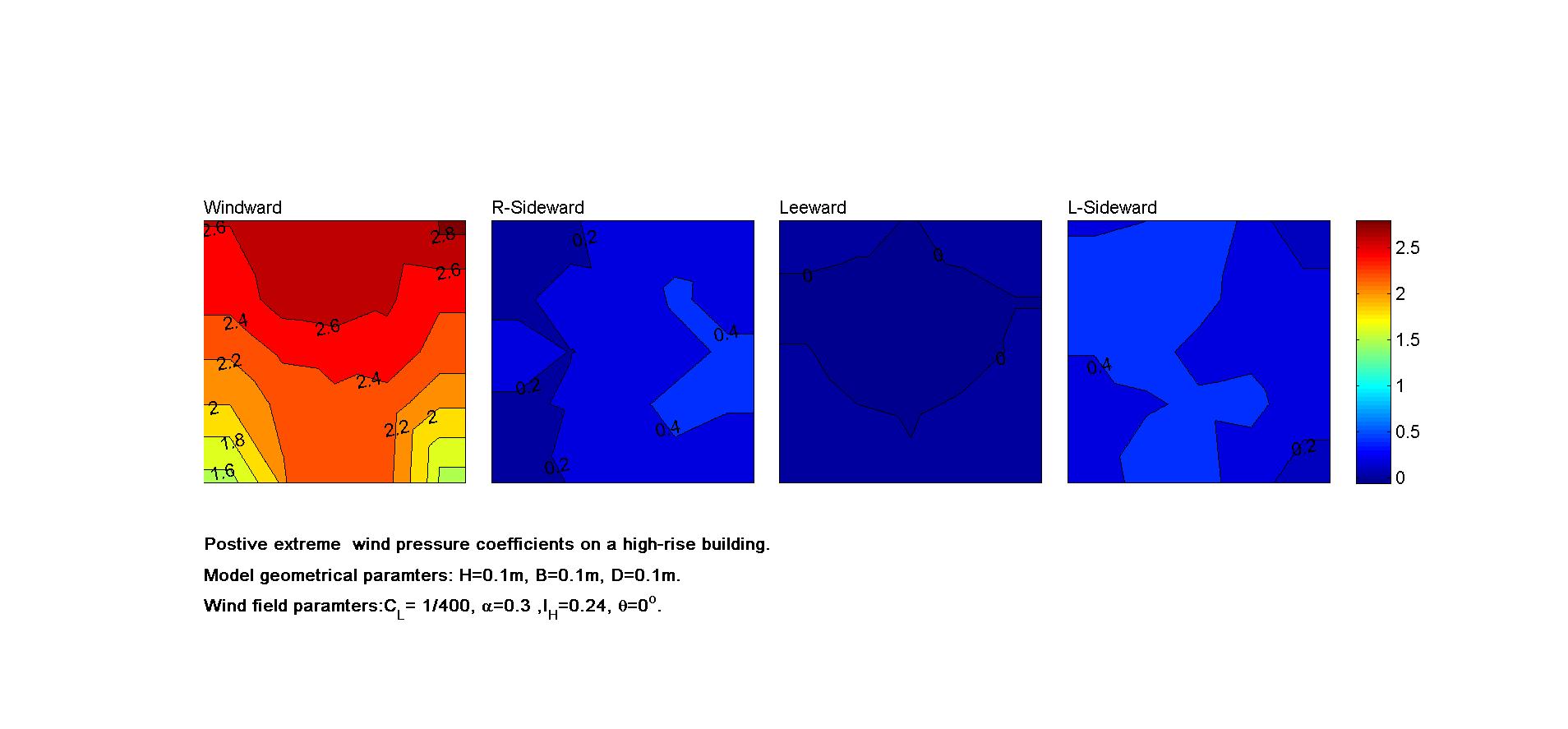

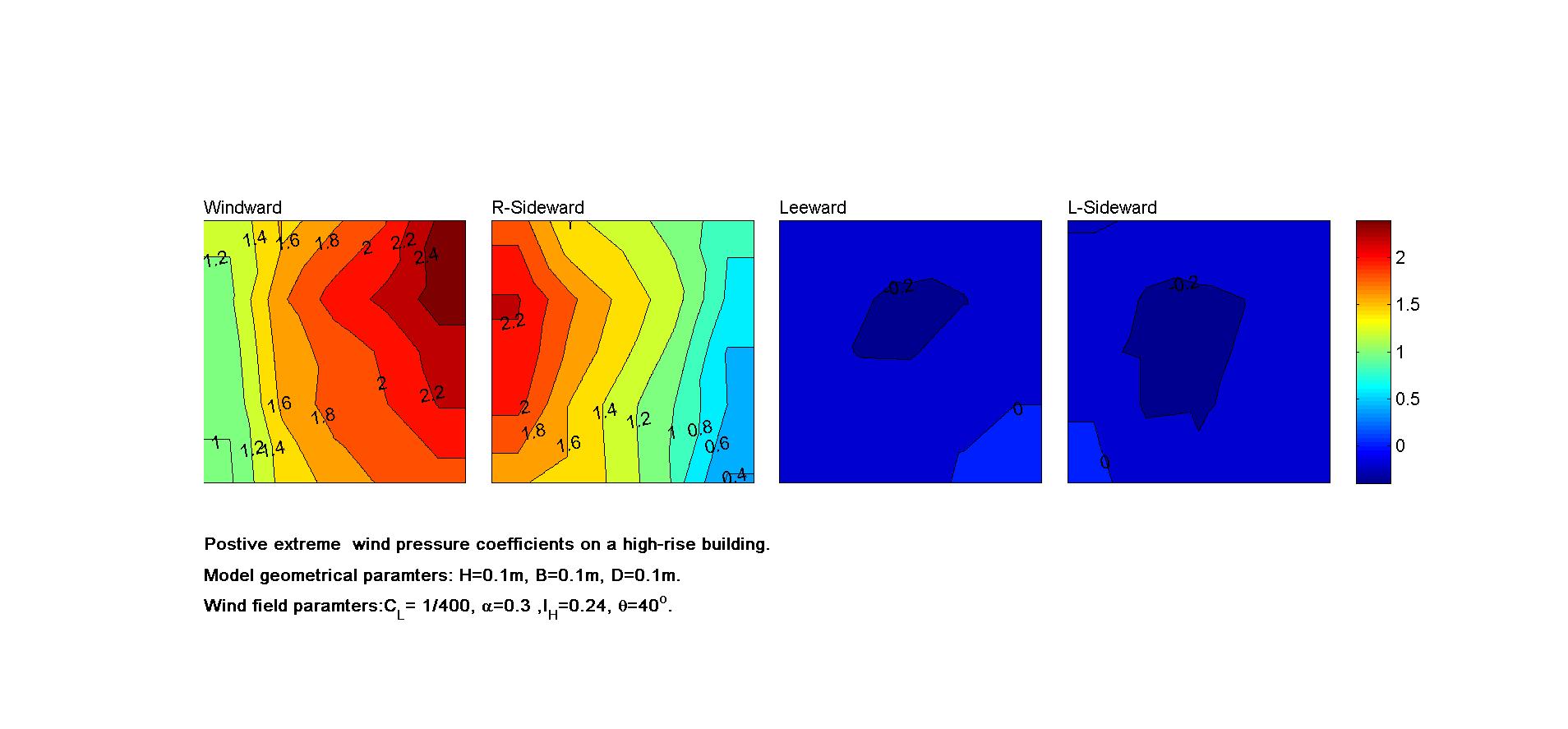

Max values

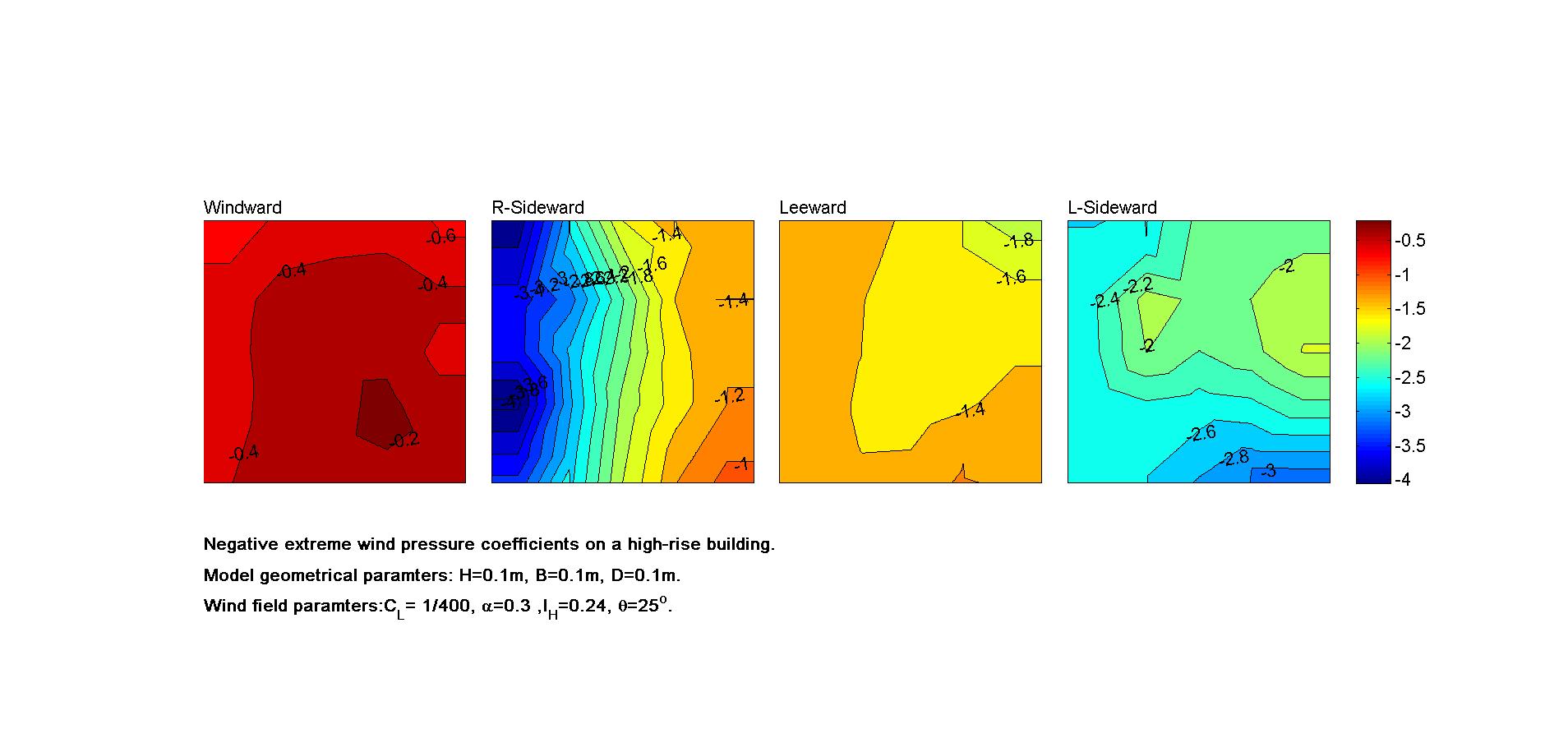

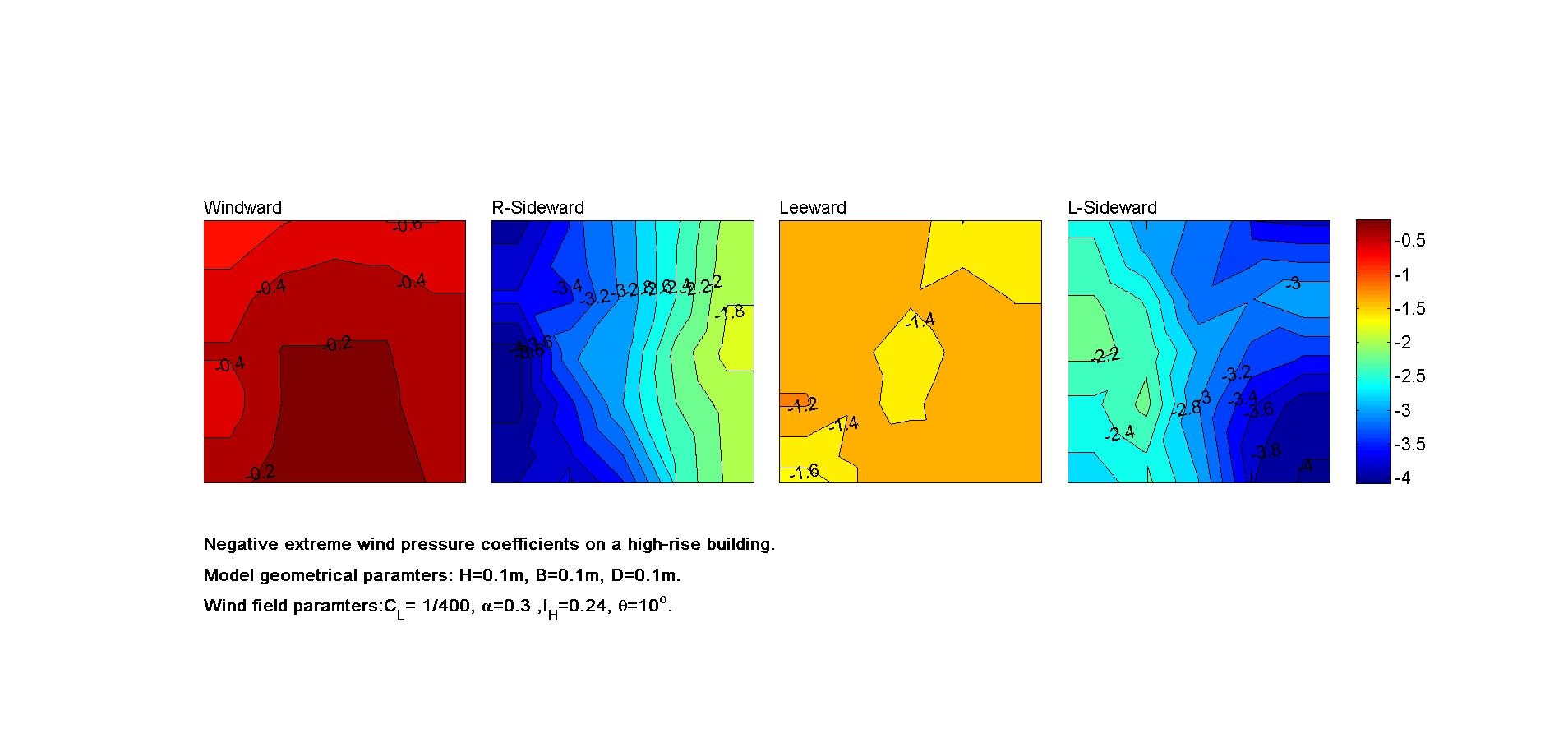

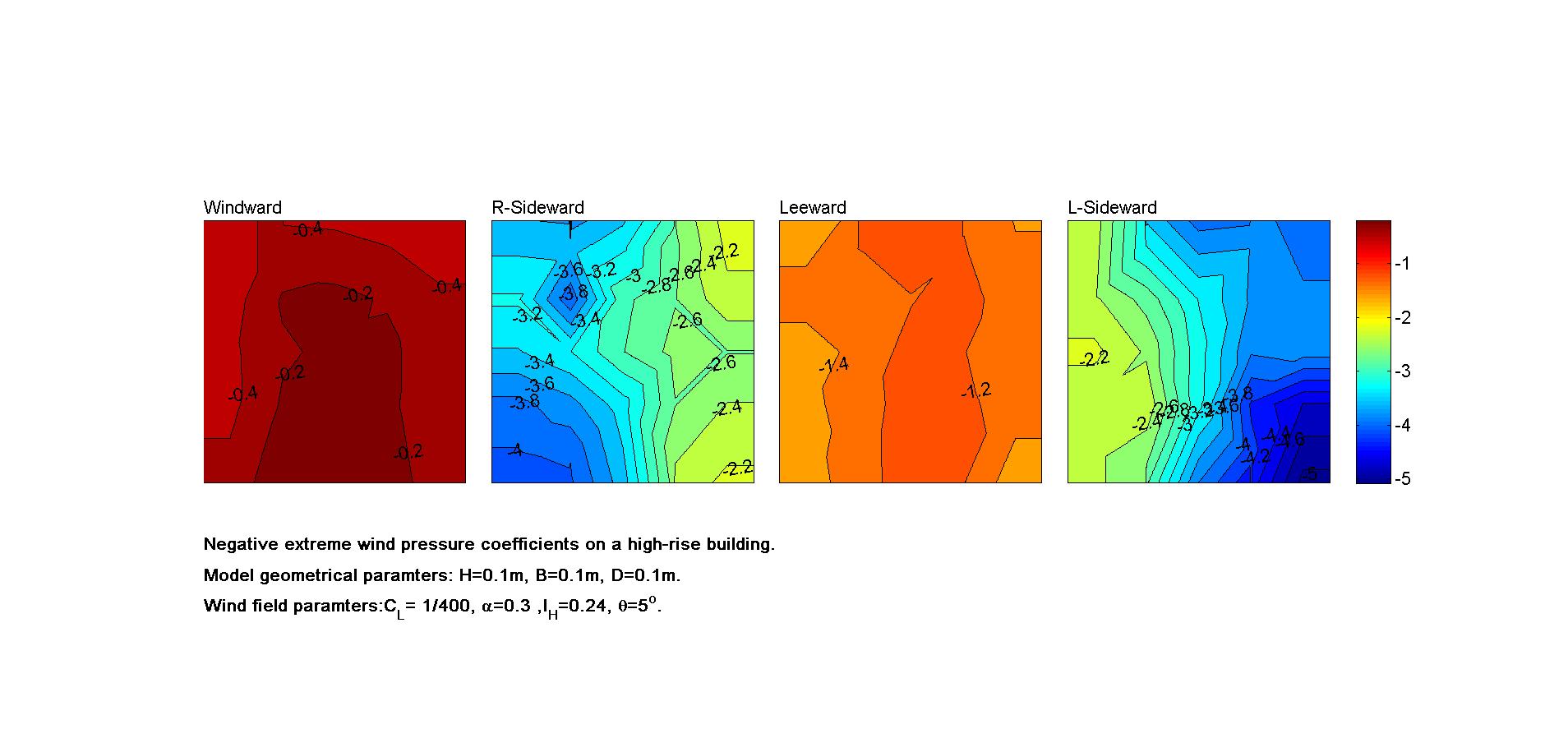

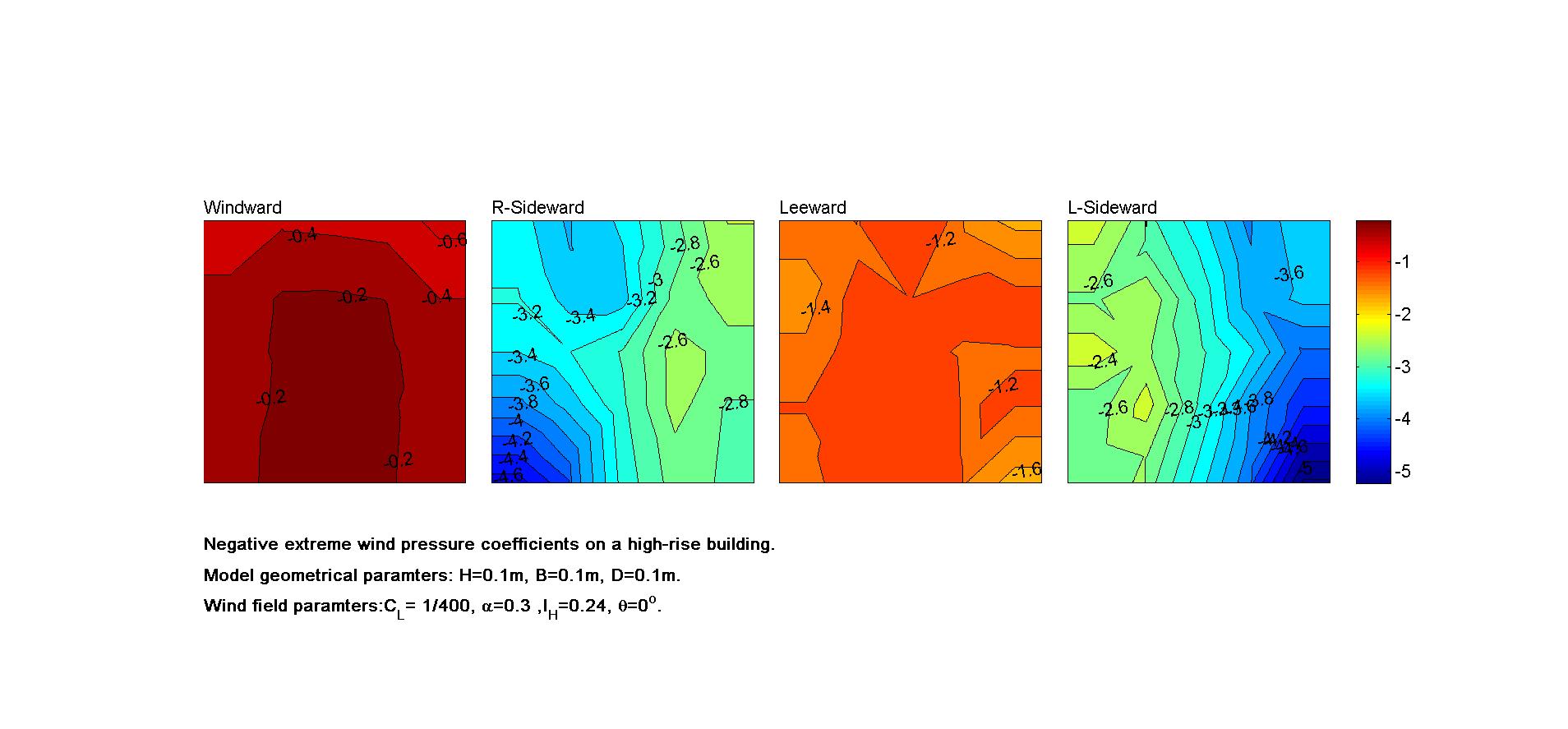

Min values

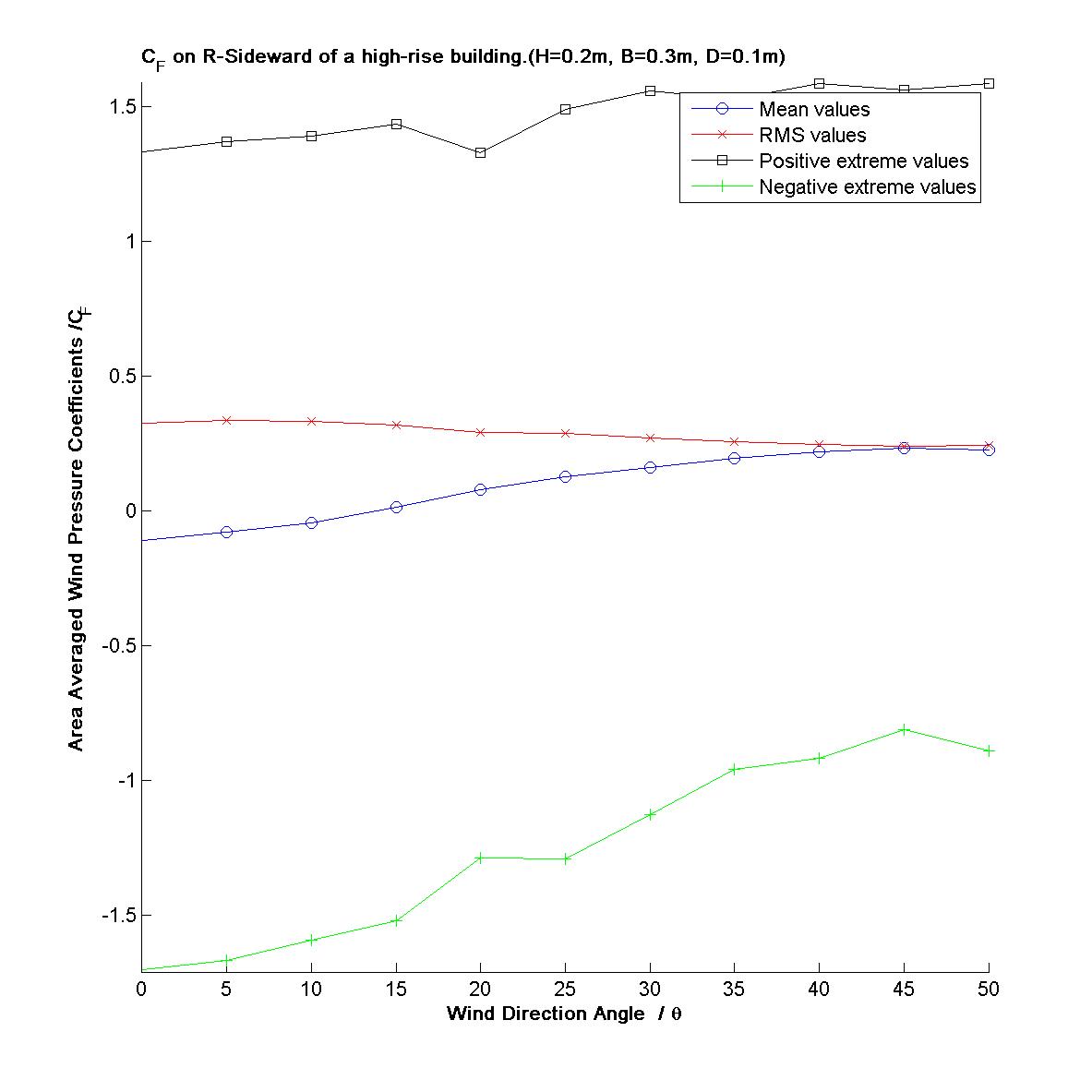

Graphs of area-average wind pressure coefficients

Windward surface	Right sideward surface	leeward surface	Left sideward surface

Time series of point wind pressure coefficients (Data files)

Wind direction	0o	5o	10o	15o	20o	25o	30o	35o	40o	45o	50o
Data files(.mat)
